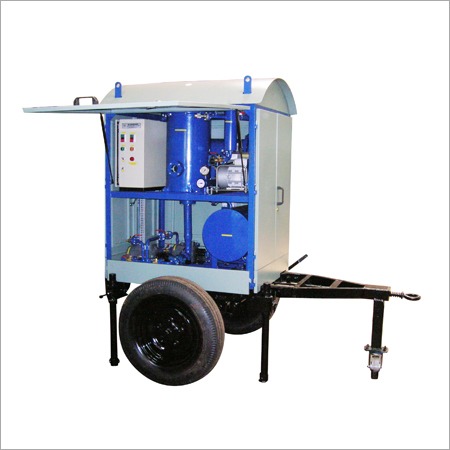

Transformer Oil Filtration Machine

With the support of our highly experienced & skilled workforce, we are renowned as one of the well equipped manufacturers and exporters of Transformer Oil Filtration Machine. Some of the latest techniques and machines are installed at our manufacturing unit for the engineering of this plant. Our offered Transformer Oil Filtration Machine is easy to install and simple to operate. We use only certified quality of raw materials and components for manufacturing these dehydration plants.

We are one of the leading manufacturers, suppliers, and exporters of Transformer Oil Filter Machine. Designed with the assistance of our engineering excellence this, transformer oil filter machine has an enclosed construction with fabricated canopy with doors for operational fluency and low maintenance. Our range of standard high-vacuum filtration and dehydration plants are used to remove moisture (free as well as dissolved), grasses, dirt, and oxidation products from mineral-based, synthetic and silicon oils. Highly suitable for on-site operation, these transformer oil filter machine can be towed with jeep or tractor.

Specifications

SR NO

Parameters

Before
Filtration

After Filtration

1

Break Down Voltage with
2.5 mm Electrode Gap.

25 kV

50-70 kV.

2

Moisture Removal

50-100 ppm

Up to < 5 ppm.

3

Neutralization Value

0.5 mg of KOH/gm of oi

< 0.1 mg of KOH/gm of oil

4

Particle size (Filter Fineness)

Visible to naked eye

Up to < 1 micron

5

Gas Content

<10% by volume

< 0.1% by volume


TECHNICAL SPECIFICATIONS

Flow Rate - LPH

600

1200

2400

4500

6000

Heater Capacity - kW

6

18

45

63

81

Technical Specifications

1-V-060

1-V-120

1-V-240

1-V-450

1-V-600

Single Stage Rotary Oil sealed vacuum Pump

100 LPM

300 LPM

500 LPM

1000 LPM

2000 LPM

Total Power Required

7.5 kW.

20 kW.

50 kW.

70 kW.

96 kW.

Fine Filter Elements Moulded Cellulose

2

4

9

18

27

Filter Fineness

3 / 0.5

Dimensions in Mtrs

Stationery Unit, W/L/H

0.6/0.9/1.4

0.8/1.2/1.5

1.0/1.8/1.6

1.2/2.0/1.7

1.2/2.4/1.8

Unit on Castors, W/L/H

0.6/0.9/1.6

0.8/1.2/1.7

1.0/1.8/1.9

1.2/2.0/2.0

1.2/2.4/2.1

Unit on Trailer, W/L/H

1.2/1.4/2.1

1.4/1.7/2.2

1.6/2.2/2.4

1.8/2.4/2.6

1.8/2.8/2.6

Max Oil Content in
Transformer -  Ltrs.

1000

2500

7500

20000

35000
