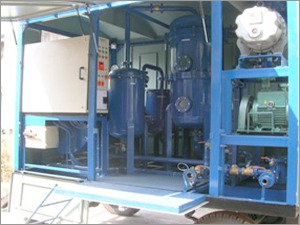

Two Stage Transformer Oil Filtration Plant

Two Stage Transformer Oil Filtration Plant
Two Stage Transformer Oil Filtration Plant
Product Code : 09
Product Description
High Vacuum Transformer Oil Filtration

We are considered to be one of the most professional manufacturers and exporters of Two Stage Transformer Oil Filtration Plant. In entire market, these oil filtration plants are considered to be the best for all types of electrical insulating oils. Our offered Two Stage Transformer Oil Filtration Plant is capable of removing moisture, gases, dirt and oxidation products from mineral-based and synthetic & silicon oils. This type of oil filtration plant primarily comprises of heating, filtration and vacuum system.


Flow Rate LPH 3000 4500 6000 8000 12000 18000
Motor Power Inlet HP 1.5 2 5 7.5 10 10
Outlet HP 3 5 5 7.5 12.5 15
Vacuum – 1 HP 1 1 2 5 7.5 7.5
Vacuum-2 HP 1 2 5 7.5 7.5 10
Booster HP 1 2 2 5 5 10
Heater Power Heater – 1 Total Kw 27 36 36 36 36 48
Nos x Kw 9 x 3 9 x 4 9 x 4 9 x 4 9 x 4 12 x 4
Heater – 2 Total Kw 27 36 36 36 36 48
Nos x Kw 9 x 3 9 x 4 9 x 4 9 x 4 9 x 4 12 x 4
Heater - 3 Total Kw 0 0 36 36 36 36
Nos x Kw 0 0 0 24 36 36
Heater – 4 Total kw 0 0 0 24 36 36
Nos x Kw 0 0 0 6 x 4 6 x 4 9 x 4
Total (kw)   54 72 108 132 144 168
Vacuum Pump Displacement Vacuum – 1 M3 / Hr 18 36 60 90 120 160
Vacuum – 2 M3/Hr 36 60 90 120 120 250
Booster M3/Hr 150 375 500 1000 1000 2000
Filter Elements (1 µm) Ø63x500L 4 7 10 12 16 20
Suitable for Transformers Upto 75 MVA 150 MVA 250 MVA 350 MVA 500 MVA 500 + Mva
